Installing a spa: the electrical bits most owners don't see coming

Quick answer

A spa pool requires a dedicated circuit, a 30 mA RCD on that circuit, and minimum clearance distances between the water and any power points or switches — all set out in AS/NZS 3000. This is licensed electrician work, full stop. The electrician must also issue a Certificate of Electrical Safety when the job is done.

Why the electrical side catches people off guard

Most people buying a spa think about the plumbing, the decking, and where the jets will face. The electrical requirements tend to arrive as a surprise — and sometimes an expensive one — once the spa is sitting in the backyard waiting to be connected.

The short version: a spa pool sits in one of the most demanding categories in the AS/NZS 3000 Wiring Rules. Water and electricity are a proven fatal combination, so the standard treats spa installations with the same seriousness it gives swimming pools. That means specific rules about circuits, safety switches, wiring routes, and where you can and can’t put a power point — none of which are negotiable.

Here’s what to understand before the spa arrives on a pallet.

The dedicated circuit requirement

Your spa cannot share a circuit with other appliances. Under AS/NZS 3000, it needs its own dedicated circuit run from your switchboard. That matters for two reasons.

First, a spa’s motor, pump, and heating element draw significant current — often several kilowatts simultaneously. Sharing a circuit with other loads risks nuisance tripping and, more seriously, wiring that runs hotter than it should over time.

Second, a dedicated circuit means a dedicated safety switch (RCD). If the spa circuit has its own 30 mA RCD at the board, that switch can isolate the spa independently without cutting power to the rest of the house. Energy Safe Victoria recommends RCD protection on all circuits supplying spa pools. This isn’t optional guidance — it’s the kind of thing an ESV inspector will look for.

If your switchboard is older and doesn’t have space for new circuits, or is still running without safety switches fitted, that’s a separate conversation worth having before the spa goes in. A switchboard that needed attention anyway often comes to light at spa-install time. You can read more about residential electrical safety and what a switchboard review involves.

Location clearances — measuring from the water, not the wall

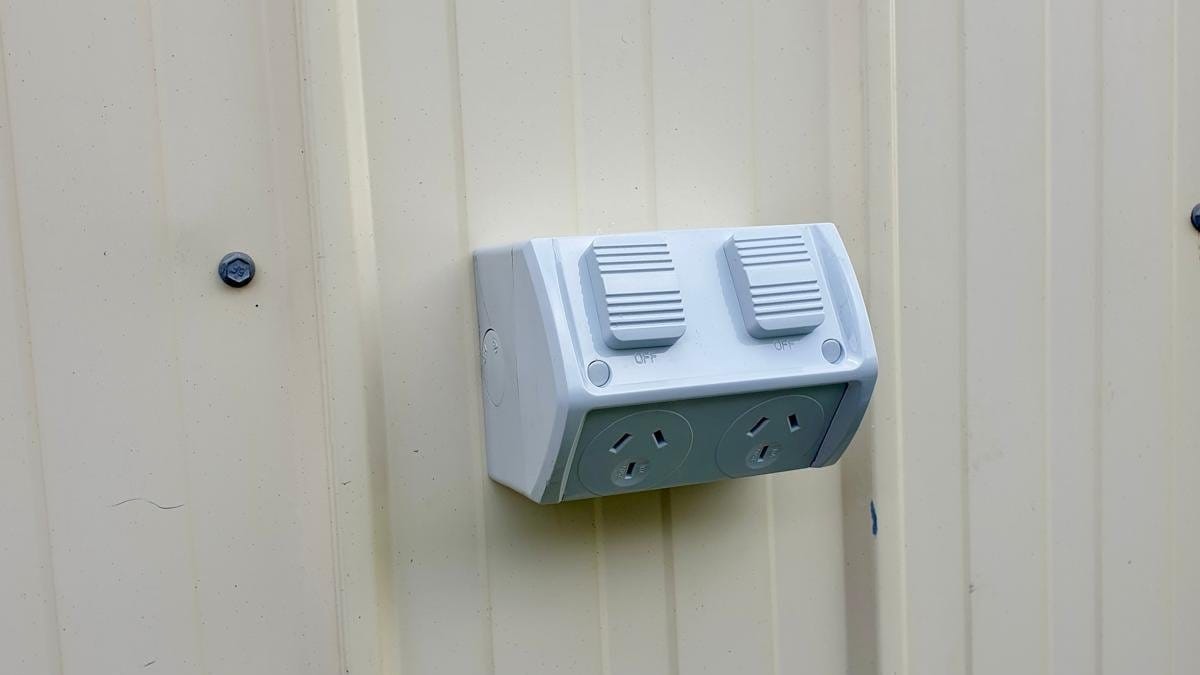

The Wiring Rules set exclusion zones around spa pools. General-purpose power points cannot be installed within 1.25 metres of the inside edge of the spa — meaning the edge of the water, not the outer cabinet.

Switches that control the spa’s own equipment — the pump, the blower, the lights — must also meet positioning rules, and must be a type rated for outdoor or wet-area installation. A standard indoor switch is not suitable.

What this means in practice: if your outdoor entertainment area already has power points nearby, some of them may need to be relocated before the spa is commissioned. Get your sparky out to look at the space before the spa is delivered, not after. Moving a power point is a much simpler conversation when the area is still clear.

Overhead clearances matter too. Wiring must not run where it can be touched by someone standing in the spa, and cables running to the spa’s control unit or equipment pod need to be protected against physical damage and moisture ingress. Conduit selection and how it’s fixed to the structure are part of the job, not an afterthought.

Single-phase or three-phase — how to know which you need

Most portable and smaller cabinet spas — the kind sold through pool shops and big-box retailers — run on single-phase supply. Their heating elements are typically sized to work within a standard 10A or 15A circuit, and the trade-off is that heating the water takes longer.

Larger fixed spas, in-ground installations, or spa-pool combinations with higher-output heaters — often 10 kW and above — benefit from three-phase supply. Three-phase allows a heavier electrical load to be distributed across three conductors, which means faster heating and less strain on each phase.

Whether three-phase is available at your property depends on your local network connection. Many residential properties in established suburbs are single-phase only. If three-phase supply isn’t already connected at your switchboard, having it brought in is a utility-level job that involves your distribution network service provider — and it takes time to organise. Worth checking early.

If you’re in a newer growth area — Craigieburn or Epping, for instance — some recently built homes do have three-phase supply already available because the local network infrastructure was built to support it. But don’t assume. Your sparky can check the switchboard and tell you what’s there.

Weatherproofing and the equipment pod

The spa’s pump, control board, and heating element usually sit inside an equipment pod — typically accessible through a removable panel on the spa cabinet. All wiring that enters this pod must be weatherproof, correctly rated for outdoor use, and properly sealed.

Cable entry points need to be sealed against water ingress. Any conduit running underground to the pod — from the switchboard or from an isolating switch — must be buried at the correct depth and marked. Conduit that runs above ground must be UV-stable and mechanically protected where it could be knocked or walked on.

The isolating switch — a lockable switch that cuts power to the spa for maintenance — needs to be within sight of the equipment pod but outside the clearance zone. This is what you (or a service technician) use before reaching into the equipment area. It’s a safety device, not a decoration.

All of these details are part of what a licensed electrician handles when they quote a spa install. If a quote doesn’t mention any of them, that’s worth asking about.

The Certificate of Electrical Safety

Once the electrical work is done, your electrician must issue a Certificate of Electrical Safety. This is a legal requirement under Victorian law — not something issued at the sparky’s discretion, and not optional even for small jobs.

The CoES is your record that the installation was inspected by a licensed professional and meets the Wiring Rules. Keep it with your property documents. If you ever sell the property, it’s the kind of paperwork a buyer’s conveyancer or building inspector will ask about. Energy Safe Victoria maintains records of CoES documents lodged in Victoria.

If a tradesperson offers to do the electrical work without issuing a CoES, that’s a significant red flag. It may mean the work isn’t being done by a licenced REC holder, or that it won’t be lodged correctly.

Before you buy the spa

The sensible order of events — if you want to avoid surprises — is this:

1. Choose the spa model and note its electrical specifications (voltage, phase, current draw, element wattage).
2. Have a licensed electrician assess your switchboard, your proposed spa location, and the clearances available before the spa is delivered.
3. Confirm whether your property can support the load, and whether three-phase is needed or available.
4. Get the electrical work quoted and scheduled so it’s done before — or at the same time as — the spa arrives.

Trying to reverse that order is where the nasty surprises come from. A sparky who offers specialty electrical services — including spa and pool wiring — will have done this assessment before and can flag issues early, not after the concrete is poured.

Homeowners in Craigieburn and surrounding northern suburbs regularly run into the three-phase question because block layouts and switchboard configurations vary across the area. A quick site visit answers it.

What to do next

Check your spa’s spec sheet for its electrical requirements and pass those to your electrician before anything is installed. If you’re still in the planning stage, a site visit now costs nothing compared to relocating a power point or upgrading a switchboard after the spa is in place.

If you’d rather a licensed sparky handle the whole thing, give Yiannis a call on 0434 254 474 or send a quick message for a free quote.

Sources

• Energy Safe Victoria — household wiring and safety switches ↗
• Energy Safe Victoria — about Certificates of Electrical Safety ↗
• AS/NZS 3000:2018 — Wiring Rules
